Model	Primary DSP/CPU and (RAM)	CCD driver, CCD row driver, (CCD marking)	Power manager, PWM controller	Zoom driver, OIS driver, Mirror charge driver	Flash charge driver	IGBT	Audio/video controller, all other chips	System control processor, MCU	Battery	LCD	ZOOM	Comments
Sony A5100 Also known as: Sony ILCE-5100 Any other parts or stuff E-mount bayonet Micro USB cable Sony A5100 PCB Sony SD MS combo reader	DSP STACKED	CXD90027GF	BD8331 Secondary RTC, HDMI power manager QUJ TPS63061 QUJ TPS63061	M02 US6M2 P+N MOSFET	20071	(Sony ST01 flash flex) ZE (TIG065E8)	12904 NJM12904RB1 current monitor 76312 audio processor BD11600N USB switch KM5928132 Type WN WiFi	MB9AF004		(FP-2268 lcd flex) AM30X548BA3 (4290 fl) touch	Sony NEX-3N shutter plate Широкий список моделей с одной механикой. См. фотки

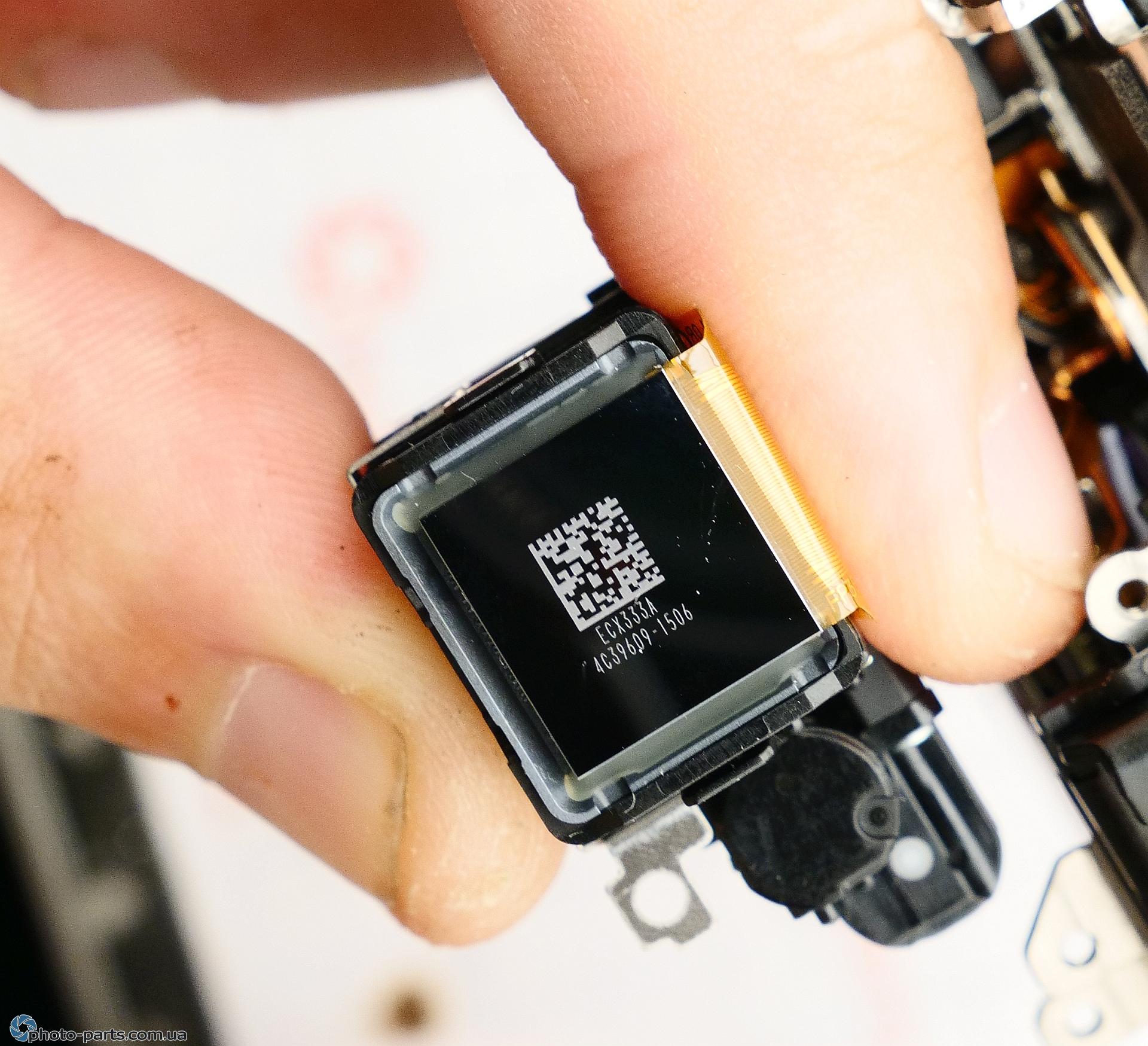

Sony A6000 Also known as: Sony ILCE-6000 Any other parts or stuff E-mount bayonet Sony A6000 PCB Sony A6000 shutter button Sony SD MS combo reader	CXD90014GF STACKED	CXD90027GF	8072PN USB power management BD8331 Secondary RTC, HDMI power manager BD8336 OUJ TPS6306 step down OUJ TPS6306 step down	6376 BD6376 M02 US6M2 P+N MOSFET	20071	(Sony A6000 flash flex) ZE (TIG065E8)	12904 NJM12904RB1 current monitor 76312 audio processor 9950A NFC interface BD11600N USB switch KM4714030 Type WN WiFi	MB9AF004	NP-FW50	(ECX333A viewfinder) (LC-1018 lcd flex) AM30X548BA3 (4290 fl)	Sony NEX-F3 shutter plate (H094-T4)
Sony A6300 Also known as: Sony ILCE-6300 Any other parts or stuff E-mount bayonet Sony A6000 shutter button Sony A6300 PCB Sony SD MS combo reader	CXD90014GF STACKED	CXD90027GF	54326 8072PN USB power management BD8331 Secondary RTC, HDMI power manager BD8336 OAP TI QUJ TPS63061 QUJ TPS63061	6376 BD6376	1K2	(Sony A6000 flash flex) ZE (TIG065E8)	112B 263 8452 MMA8452 3axis accelerometer 4695 9950A NFC interface B0L634 BD11600N USB switch KM6N16118 Type WN WiFi	MB9AF004	NP-FW50	(ECX334A viewfinder) (lc-1030 lcd flex) AM30X548BA3 (4290 fl)	Sony A6300 shutter	Внимание: затвор встречается как версии A6300 так и A6000, затворы не совместимы и отличаются шторкой у датчика
Sony A6500 Also known as: Sony ILCE-6500 Any other parts or stuff E-mount bayonet Sony A6000 shutter button Sony A6500 PCB Sony SD MS combo reader	CXD4236-2GG CXD90014GF STACKED DSP STACKED		54326 8072PN USB power management BD8331 Secondary RTC, HDMI power manager BD8336 OAP TI QUJ TPS63061 QUJ TPS63061	R2J30503	1K2	ZE (TIG065E8)	112B 263 8452 MMA8452 3axis accelerometer 3232 4635 9950A NFC interface B0L 6378 BD11600N USB switch SS6N04005 Type 1DR WiFi	MB9AF004	NP-FW50	(ECX334A viewfinder) (FP 390C-F0F viewfinder) (lc-1030 lcd flex) AM30X548BA3 (4290 fl) touch	Sony A6500 shutter	вместо защитного стекла на дисплее тачскрин
Sony AX33 Also known as: Sony FDR-AX33 Any other parts or stuff Sony AX33 PCB	CXD4236-1GG CXD90014GF STACKED CXD90027GF	(LF-2117 CMOS flex)	BD8330A BD8331 Secondary RTC, HDMI power manager				1200 4695 8072PN BU79R272	MB9AF004		(FP-2296-11 lcd flex) AM30X548BA3 (4290 fl)	Sony AX33
