Model	Primary DSP/CPU and (RAM)	CCD driver, CCD row driver, (CCD marking)	Power manager, PWM controller	Zoom driver, OIS driver, Mirror charge driver	Flash charge driver	IGBT	Audio/video controller, all other chips	System control processor, MCU	Battery	LCD	ZOOM	Comments
Canon G7x Also known as: Canon PC2155 Any other parts or stuff Canon G7x PCB	Digic STACKED		44C035 MAX8972AEW PSR1	R2A30447	BD4234NU	8G151 fully compatible with p 4010	4958 ADV7528		NB-13L	A030M026AA1 (A1005501S)	Canon G7x 8.8-36.6mm 1:1.8-2.8
Canon SX400 Any other parts or stuff Canon SX400 PCB	CK4-1521	ADDI9011	39C338	R2A30447	BD4234NU	8G151 fully compatible with p 4010	U26137		NB-11L	69.03A37.G04	Canon SX400 Same as SX500, differs in AF drive system, wider flex
Canon SX700 Also known as: Canon PC2091	Digic STACKED		44C035	Q11H	BD4234NU	8G151 fully compatible with p 4010	4958 ADV7528		NB-6LH	A1005070S (T08184AAPA1)	Canon SX700
Nikon AW100	Sanyo EV5XA		ADP5045	LV8415	BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010		THGBM3G4D1FBAIG	EN-EL12	TM08D112BAA1 (2850fl)

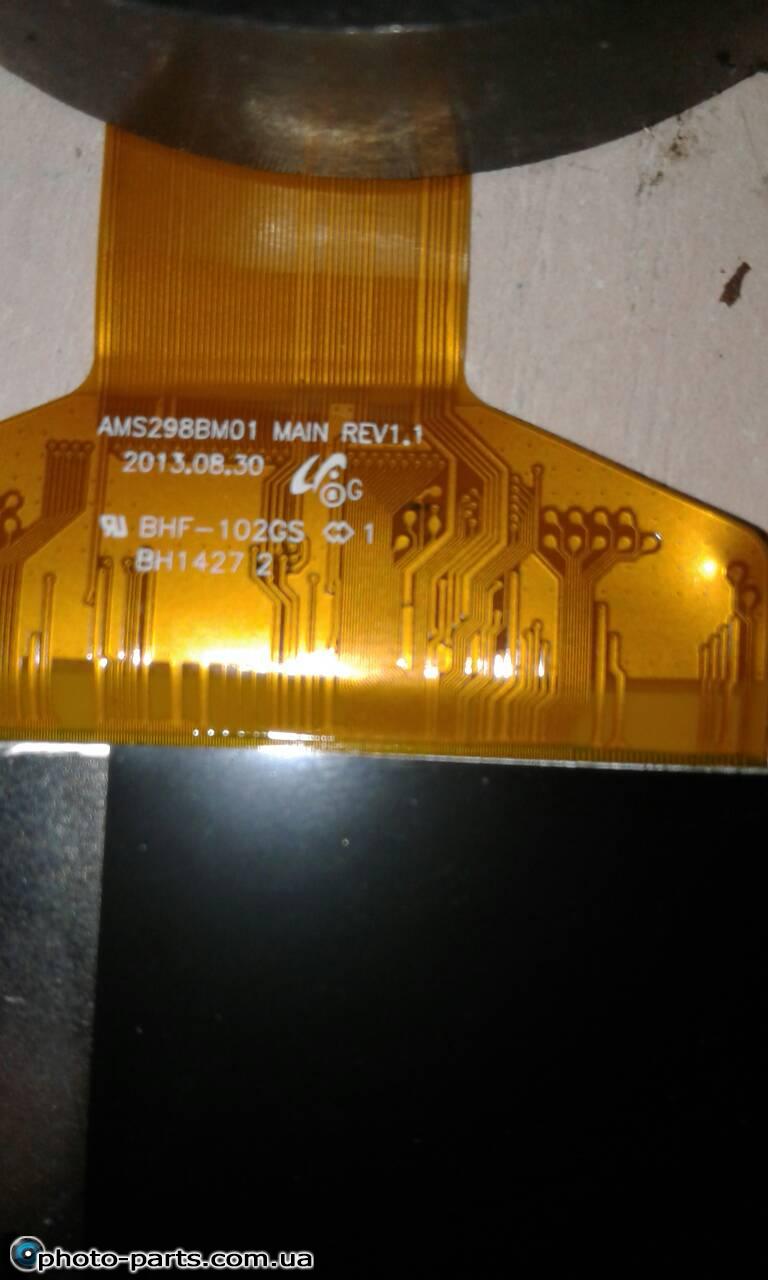

Nikon AW130 Any other parts or stuff Nikon AW130 PCB	(K4B2GT640Q-BYK0) Sanyo EV8XA		0056X RT5010A SEM	1015 425A 445X U24033	BD4234NU	8G151 fully compatible with p 4010	532B 652 923 923		EN-EL12	AMS298BM01	Nikon AW130

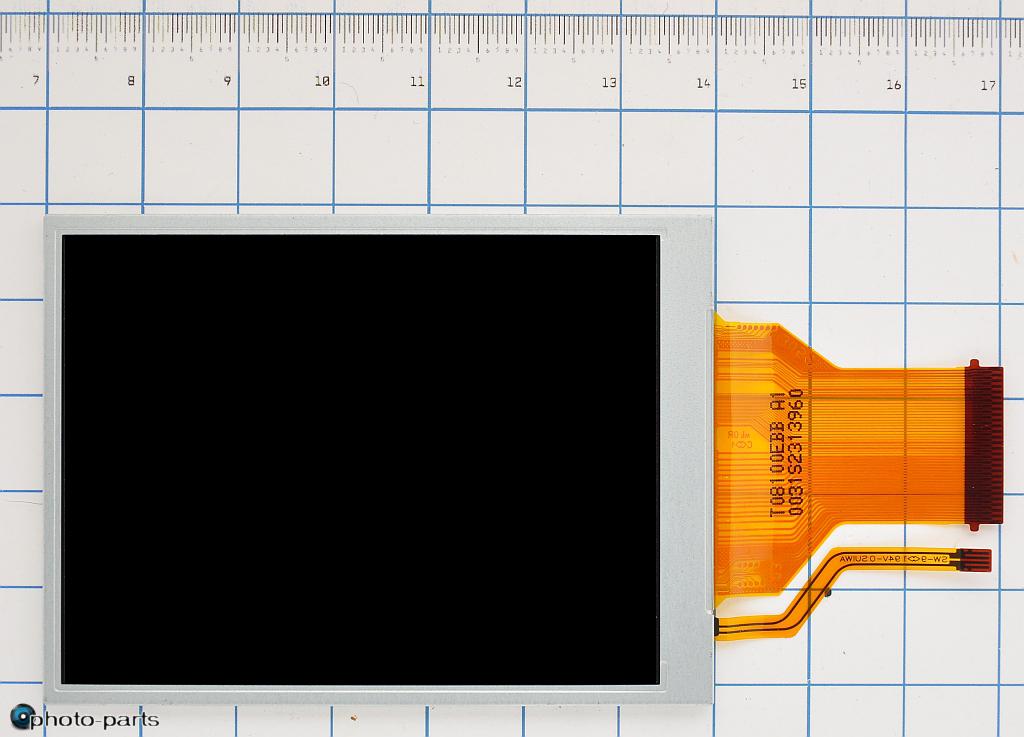

Nikon L820 Any other parts or stuff CB-USB7 cable Nikon D5100 LCD window Nikon L820 PCB	Sanyo EV7XA		56 EM RT5010A	445X D6548	20071	8G151 fully compatible with p 4010			4xAA	T08100EBB (3052fl)	Nikon L820
Nikon L830 Any other parts or stuff CB-USB7 cable Nikon L830 PCB	Sanyo EV7XA		56 FD RT5010A	445X D6548	20071	8G151 fully compatible with p 4010			4xAA	4131 fl	Nikon L820

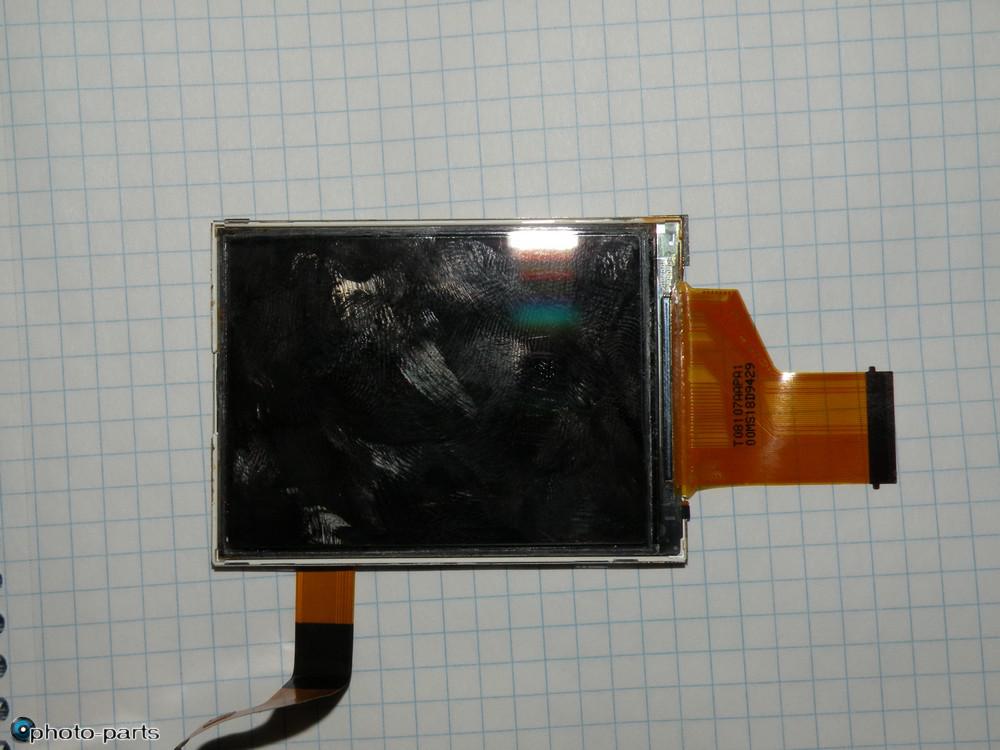

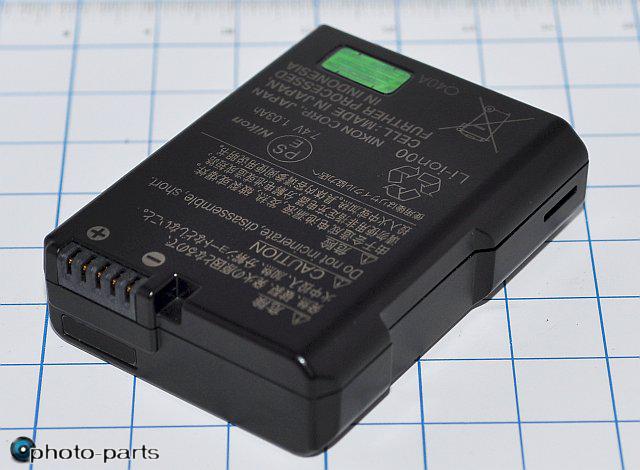

Nikon P7100 Also known as: Nikon coolpix P7100 Any other parts or stuff Nikon P7100 PCB	Sanyo EV5XA		BD9759MW	V8075	B4220	8G151 fully compatible with p 4010		87F292B	EN-EL14	T08107AAPA1 (2751 fl)	Nikon P7000
Nikon S1200 Also known as: Nikon S1200 PJ Any other parts or stuff CB-USB7 cable Nikon S1200 PCB	Sanyo EV5XA		ADP5025		BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010	AKM8859		EN-EL12	69.03A31.T02	Nikon S1200	Lens incompatible optically with S1000, S1100

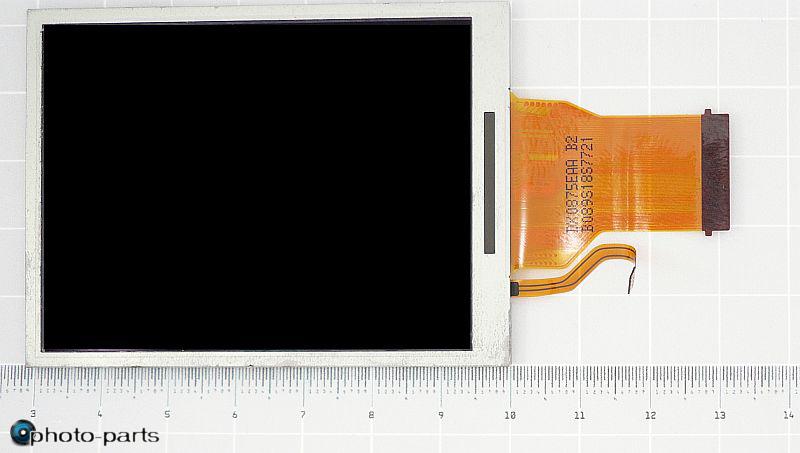

Nikon S9100 Any other parts or stuff CB-USB7 cable Nikon S9100 PCB	Sanyo EV5XA		ADP5045			8G151 fully compatible with p 4010			EN-EL12	DX0875EAA (2230 fl)	Nikon S9100
Nikon S9400 Any other parts or stuff CB-USB7 cable Nikon S9400 PCB	EV7XA		RT5010A	D6548		8G151 fully compatible with p 4010	0056X		EN-EL12	AMS300PU03	Nikon S9400
Nikon S9700 Also known as: Nikon coolpix S9700 Any other parts or stuff Micro USB cable	Sanyo EV8XA		RT5010A		BD4234NU	8G151 fully compatible with p 4010			EN-EL12	AMS298BM01	Nikon S9900
Olympus SH21 Also known as: Olympus SH-21	Sanyo EV5XA		ADP5045	D6548	BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010	4182A			69.03A31.T02 touch	Olympus VR320 4.24-53.0mm 1:3.0-5.9
Olympus SZ10 Also known as: Olympus SZ-10 Any other parts or stuff CB-USB5 cable	Sanyo EV5XA	ADDI9008	ADP5026	428X BGA 841601A BGA	BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010	0052NS Battery charger		Li-50B	69.03A31.T02 69.03A40.T01	Olympus SZ10
Olympus SZ12 Also known as: Olympus SZ-12 Any other parts or stuff CB-USB5 cable Olympus SZ12 PCB	Sanyo EV5XA	VSP6300A	ADP5026	D4AF ACL110 D6548	BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010	0052NS Battery charger			69.03A31.T02	Olympus SZ14
Olympus SZ16 Any other parts or stuff CB-USB5 cable Olympus SZ16 PCB	Sanyo EV6XA		0056X		BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010			Li-50B	69.03A40.T01	Olympus SZ14
Olympus SZ20 Also known as: Olympus SZ-20 Any other parts or stuff CB-USB5 cable	Sanyo EV5XA		ADP5045	D4AF ACL110 D6548	BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010	0052NS Battery charger		Li-50B	69.03A31.T02 TJ030NC03EA (304000565) = Nikon S4000	Olympus VR320 4.24-53.0mm 1:3.0-5.9	Версии дисплеев не совместимы
Pentax WG1 Also known as: Pentax Optio WG-1	Sanyo EV5XA	ADDI9008	ADP5026	U24026 V8075	BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010			D-LI92 (Li-50B)	TJ027NC05BA (304000563)	Pentax W90
Pentax WG10 Also known as: Pentax Optio WG-10	Sanyo EV5XA	ADDI9008	ADP5026	U24026 V8075	BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010			D-LI92 (Li-50B)	TJ027NC05BA (304000563)	Pentax W90
Pentax WG2 Any other parts or stuff Pentax WG2 PCB	Sanyo EV6XA		ADP5045	U24026	BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010			D-LI92 (Li-50B)	TX0840AAAA1 (1900 fl)
Pentax WG3 Also known as: Pentax WG-3 Any other parts or stuff Pentax WG3 PCB	(K4B1G1646G-BYH9 RAM) Sanyo EV7XA		RT5010A	444B 444B D4AF ACL110	BD4225NU BD4224 заменяема	8G151 fully compatible with p 4010	0052NS Battery charger 263 8452 MMA8452 3axis accelerometer 2BC4591 923	LC87F7932B	D-LI92 (Li-50B)	TX0840AAAA1 (1900 fl)	Olympus TG-1	LCD from TG850
Ricoh GR II Also known as: Ricoh GR 2 Ricoh GR mark 2 Any other parts or stuff Ricoh GR II PCB	Pentax 0006-A00		BD9357	D24026	BD4222 Datasheets/KCD-A210-BACH8SchematicDiagrams_ENG.pdf	8G151 fully compatible with p 4010	231 CA249 (BGA) 8429 ADV7523		DB-65	432AKN7 (1-886-350-11)	Ricoh GR II
